Expert

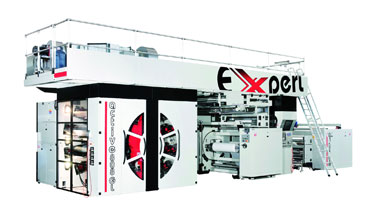

Active 808GL

Expert's production program includes:

    • Rotary stack type flexo printing machines from 1 to 8 colors, gear and gearless driven, from reel to reel or in line with extruders, welding machines, paper bag machines or other in-line solutions.
    • Gearless central impression flexo presses; 4-, 6-, 8- and 10 colors.
    • Gravure printing units to be put in-line with flexo printers.
    • Automatic inking and washing systems for flexo units with doctor blades.
    • Special applications and retrofitting.

Expert – Who We Are

Company EXPERT srl starts from a pool of experts with a consolidated Know-how on the flexo and converting market.

Its purpose is to supply a technologically advanced and up-to-date product, with a particular attention to the after sales service, trying always to find a solution to Costomers' needs.

EXPERT srl bets not only on quality and applied technology, but especially on the easy handling and reliability of its products.

The long lasting know-how in this field of EXPERT's project managers contributes to keep the production standards always at high levels. The continuous confrontation, in order to find new and more functional solutions, is the base of the collaboration between EXPERT srl and System Integrator SITEC srl, for the planning and development of dedicated software and for the realization of new automation systems for its flexo printers, its unwinders and rewinders.

The two companies, beyond being part of the same group, have developed in symbiosis a synergy who brought a vanguard technology to the flexo printing machines.
The company's activity is based on the flexibility and therefore it carries out:

  • the design and construction of machines and accessories for the converting industry,
  • the maintenance service and customer assistance,
  • the design and construction of special machines, on Customer's request.

The factory is located in the industrial area of S. Martino Buon Albergo (Verona), with a covered area of 2.200 m2, own property, where the technical, the commercial and the administration department operates, together with the machine assembly and testing lines.




CENTRAL DRUM
Flexo Machines IC type and STACK type for every need

COMPACT 608 GL

Central Impression Flexographic Printing Press, Type COMPACT, Suitable for the label industry with UV curing system

  • GEARLESS "GL" transmission
  • 4,6,8 – colour central impression flexo press
  • Printing width: from 600 to 1000 mm
  • Print repeat: from 260 to 650 mm
  • Printing speed: up to 350 MPM
  • Automatic pre-register at machine start-up,
  • Sleeve change system in the machine for plate- and anilox sleeves,
  • Closed chamber doctor blade inking system,
  • Recirculation ball bearing screws, driven by 4 motors with job memorisation and recall,
  • Horizontal and sequential print throw on and off,
  • Motorised longitudinal and side register adjustment,
  • Drying system with 2 or 4 fans and tunnel of 3 or 4,2 meter length,
  • Machine provided to print with water- or solvent based inks,
  • Enclosed printing stand with solvent reclaiming system,
  • Out-feed chill roller with pneumatic pressure roller,
  • Un- and rewinder following customers need,
  • Wide range of options, like: edge guides, viscosity contr., web viewers,
  • automatic inking and washing systems, air recirculation with LEL control,
  • and others more.
Technical characteristics:
Specifiche Tecniche
TYPE
606 – 608 – 610
Number of colours
6 – 8 – 10
Printing width max. mm
From 600 to 1000
Material width max. mm
From 650 to 1050
Printing repeat mm
From 240 up to 650
Printing speed up to:
350
Reel diameter Ø
800 – 1000
ACTIVE

Central Impression Flexographic Printing Press, Type ACTIVE

  • GEARLESS "GL" or GEAR "G" transmission
  • 6- and 8-colour central impression flexo press
  • Printing width: from 800 to 1400 mm
  • Print repeat: from 320/380 to 850 mm
  • Printing speed: up to 280 mt/min.
  • Automatic pre-register at machine start-up,
  • Sleeve change system in the machine for plate- and anilox sleeves,
  • Closed chamber doctor blade inking system,
  • Recirculation ball bearing screws, driven by 4 motors with job memorisation and recall,
  • Horizontal and sequential print throw on and off,
  • Motorised longitudinal and side register adjustment,
  • Drying system with 2 or 4 fans and tunnel of 3 or 4,2 meter length,
  • Machine provided to print with water- or solvent based inks,
  • Enclosed printing stand with solvent reclaiming system,
  • Out-feed chill roller with pneumatic pressure roller,
  • Un- and rewinder following customers need,
  • Wide range of options, like: edge guides, viscosity contr., web viewers,
  • automatic inking and washing systems, air recirculation with LEL control,
  • and others more.
Specifiche TecnicheACTIVE 800 GLEVOLUTION 1100 GL
TYPE
806 – 808 – 8101106 – 1108 – 1110
Number of colours
6 – 8 – 106 – 8 – 10
Printing width max. mm
From 600 to 1400
From 800 to 1400
Material width max. mm
From 650 to 1450
From 850 to 1450
Printing repeat mm
From 320/450 up to 850
From 320/450 up to 1100
Printing speed up to:
400
400
Reel diameter Ø
800 – 1000 – 1200 – 1500 800 – 1000 – 1200 – 1500
DYNAMIC

"GL" gearless driven machine

  • Printing group with 4, 6, 8 and 10 colours.
  • Printing width: from 800 to 1600 mm.
  • Printing length max. 850 or 1100 mm.
  • Printing speed: up to 350 mt/min.
  • Printing- and anilox sleeve change in the machine,
  • Plate sleeve change in the machine with automatic opening/closing of the supports,
  • Anilox sleeve change in the machine with manual opening/closing of the supports,
  • On request: "NON PRINT STOP" system for flying job change,
  • Colour station with 4-motor movement (job memorisation and recall),
  • Automatic pre-register at machine start up,
  • Horizontal and sequential print throw-off and on,
  • Motorised length- and side register adjustment,
  • Closed chamber doctor blade inking system,
  • Drying system with 2 or 4 fans, with electric or gas heating,
  • Machine provided to print with water-or solvent based inks,
  • Enclosed printing stand with solvent reclaiming system,
  • Chill rolls for reconditioning and out-feed tensioning,
  • Various un-and rewinders, following requirements,
  • Wide range of optional, like: edge guides, web viewers, automatic inking and washing systems, air recirculation with LEL control, viscosity controllers and others.
Specifiche TecnicheDYNAMIC 1200 GL
TYPE
1204 – 1206 – 1208 – 1210
Number of colours
4 – 6 – 8 – 10
Printing width max. mm
From 800 to 2000
Material width max. mm
From 850 to 2050
Printing repeat mm
From 320/450 up to 1250
Printing speed up to:
500
Reel diameter Ø
800 – 1000 – 1200 – 1500
IDEAL

"GL" gearless driven machine

  • Printing group with 6, 8 and 10 colours.
  • Printing width: from 800 to 1800 mm.
  • Printing length max. 900 or 1250 mm.
  • Printing speed: up to 500 mt/min.
  • Printing- and anilox sleeve change in the machine,
  • Plate sleeve change in the machine with automatic opening/closing of the supports,
  • Anilox sleeve change in the machine with automatic opening/closing of the supports,
  • On request: "NON PRINT STOP" system for flying job change,
  • Colour station with 4-motor movement (job memorisation and recall),
  • Automatic pre-register at machine start up,
  • Horizontal and sequential print throw-off and on,
  • Motorised length- and side register adjustment,
  • Closed chamber doctor blade inking system,
  • Drying system with 2 or 4 fans and tunnel of 3 or 4,2 or 6 meter length,
  • Machine provided to print with water-or solvent based inks,
  • Enclosed printing stand with solvent reclaiming system,
  • Chill rolls for reconditioning and out-feed tensioning,
  • Various un-and rewinders, following requirements,
  • Wide range of optional, like: edge guides, web viewers, automatic inking and washing systems, air recirculation with LEL control, viscosity controllers and others.
Specifiche TecnicheIDEAL 900 GLIDEAL 1200 GL
TYPE
806 – 808 – 8101206 – 1208 – 1210
Number of colours
6 – 8 – 106 – 8 – 10
Printing width max. mm
From 800 to 2000
From 800 to 2000
Material width max. mm
From 850 to 2050
From 850 to 2050
Printing repeat mm
From 400/500 up to 1250From 400/500 up to 1250
Printing speed up to:
800800
Reel diameter Ø
800 – 1000 – 1200 – 1500 800 – 1000 – 1200 – 1500




STACK R.R. and STACK IN LINE
Flexo Machines IC type and STACK type for every need

CONCEPT

Machine with gearless "GL" or with gear "G" transmission.

  • All printing possibilities (front- and back-side printing),
  • Printing width from 800 up to 1800 mm,
  • Mechanical speed: up to 350 MPM,
  • Printing length: from 320/500 to 900, 1100 or 1250 mm,
  • Plate sleeve change with automatic opening and closing of the front supports,
  • Anilox sleeve change with manual opening and closing of the front supports,
  • Each counter-impression cylinder driven by its own brush-less motor,
  • Automatic pre-register at machine start up, even for back to front printing,
  • 4-Motor print deck positioning with job memorisation and recall,
  • Horizontal, sequential throw-on/off system,
  • Printing units with closed chamber doctor blade inking. Optional: rubber roll inking,
  • Motorised longitudinal and axial register adjustment,
  • Drying system with 2 or 4 fans, with electric battery, gas heating or others,
  • Machine provided to print with water- or solvent based inks,
  • Enclosed printing stand with solvent reclaiming system,
  • Motor driven chill roll for the reconditioning and the out-feed tensioning,
  • Large range of un- and rewinders and ancillary equipment available on request, like: edge guides, video web inspections, viscosity controllers, automatic inking and washing units "RC-SYSTEM", air recirculation with LEL control and others.
Specifiche TecnicheSPRINT 900SPRINT 1100CONCEPT 1200CONCEPT 1500
Number of colours
4 – 6 – 8

4 – 6 – 84 – 6 – 84 – 6 – 8
Printing width max. mm
From 800 to 1600
From 800 to 1600
From 800 to 2000
From 800 to 2000
Material width max. mm
From 850 to 1650
From 850 to 1650From 800 to 2050From 800 to 2050
Printing repeat mm
From 320/500 up to 900

From 320/500 up to 1100From 320/500 up to 1250From 320/500 up to 1500
Printing speed up to:
350
350350350
Trasmission typeGearlessGearlessGearlessGearless
Reel diameter Ø
800 – 1000 – 1200 – 1300 – 1500
800 – 1000 – 1200 – 1300 – 1500800 – 1000 – 1200 – 1300 – 1500800 – 1000 – 1200 – 1300 – 1500
ENERGY

Easy and friendly

Stack type flexo press with geared transmission, available in two versions:

  • With single motor for each impression roller, sleeve change in the machine and pneumatic, automatic deck positioning (automatic pre-register on request).
  • One main motor for all counter impression rollers, inking with closed chamber doctor blade or with rubber roll and manual deck positioning.
  • Print unit with closed chamber doctor blade.
  • Print unit with rubber roll inking and manual deck positioning.
  • Plate sleeve change on print unit with pneumatic deck positioning.
Specifiche TecnicheEnergy 900ENERGY 1200
TYPE
904 – 906 – 908
1204 – 1206 – 1208
Number of colours
4 – 6 – 8
4 – 6 – 8
Printing width max. mm
From 800 to 1400
From 800 to 1400
Material width max. mm
From 850 to 1450
From 850 to 1450
Printing repeat mm
From 300/400 up to 900
From 300/400 up to1250
Printing speed up to:
200
200
Trasmission typeWith Gears and GearlessWith Gears and Gearless
Reel diameter Ø
800 – 1000 – 1200 – 1300
800 – 1000 – 1200 – 1300
BASE IN LINE

Machine with gear transmission

  • Printing group with: 1, 2, 4 or 6 colour stations,
  • All printing possibilities (front- and back-side printing),
  • Printing width from 800 up to 2000 mm,
  • Mechanical speed: up to 200 mt/min.,
  • Printing length: from 320/500 to 900 or 1200 mm,
  • Each counter-impression cylinder driven by its own brush-less motor,
  • Automatic pre-register at machine start up, even for back to front printing,
  • Manual print deck positioning, Optional: with 1 motor,
  • Vertical throw-on/off system (pneumatic or hydraulic depending on width),
  • Printing units with rubber roll inking. Optional: doctor blade inking,
  • Motorised longitudinal register adjustment, manual side register adjustment,
  • Back to front register adjustment,
  • Drying system with 2 fans, with electric battery, gas heating or others,
  • Machine provided to print with water- or solvent based inks,
  • Motor driven chill roll for the reconditioning and the out-feed tensioning,
  • Dancer-roll system for the in-line setting of the machine with extruder or bag maker,
  • Double electric hoist, with 2 speeds for cylinder change,
  • Wide range of ancillary equipment available on request, like: Ink pumps, viscosity controllers, air recirculation with LEL control and others more.
Specifiche TecnicheBasic 900Basic 1200
TYPE
901 – 902 – 904 – 906
1201 – 1202 – 1204 – 1206
Printing width max. mm
From 600 to 1800
From 800 to 1800
Material width max. mm
From 650 to 1850
From 650 to 1850
Printing repeat mm
From 300/460 up to 900
From 340/480 up to1250
Printing speed up to:
200
200
Trasmission typeWith gearsWith gears
AGILITY

Drives available: with gear "G" and without gear "GL"

  • 1, 2, 4, 6 e 8 colors in line with extruder, welding machine, paper bag maker, or others
  • All printing possibilities (front and back to front)
  • Printing width up to 1800 mm
  • Print repeat up to 900 mm
  • Printing speed: max. 180 mt/min.
  • Each counter-impression cylinder driven by its own brush-less motor
  • Plate sleeve change in the machine (anilox sleeve change on request)
  • Automatic pre-register at machine start up, also if back to front printing (on request)
  • Pneumatic ink deck positioning
  • Printing units with closed chamber doctor blade inking. Optional: rubber roll inking
  • Motorised longitudinal and manual side register adjustment
  • Horizontal, sequential throw-on/off system
  • Drying system with electric or gar air heating (others on request)
  • Machine provided to print with solvent- or water based inks
  • Chill roll for reconditioning and out-feed tensioning
  • Speed synchronisation by encoder or dancer roll system
  • Wide range of ancillary equipment available, like; viscosity controllers, automatic inking and washing units "RC-SYSTEM", air recirculation with LEL control, and others more.
Specifiche TecnicheAgility 900Agility 1200
TYPE
901 902 904 906 908
1201 1202 1204 1206 1208
Number of colours
1 2 4 6 8
1 2 4 6 8
Printing width max. mm
From 600 to 1800
From 600 to 1800
Material width max. mm
From 650 to 1850
From 650 to 1850
Printing repeat mm
From 300/460 up to 900
From 340/480 up to1250
Printing speed up to:
200
200
Trasmission typeWith Gears and GearlessWith Gears and Gearless
LINEA

Only gearless version available

  • 1, 2, 4, 6 colour in-line with extruder, bag-maker or others
  • Printing possibilities: only front side or front and back side (on request)
  • Printing width up to 2000 mm
  • Print repeat: max. 900 mm or 1250 mm
  • Printing speed up to 200 mt/min.
  • Inking through closed chamber doctor blades, or rubber roll inking (on request)
  • Cylinder drive: "GEARLESS"
  • Automatic pre-register at machine start
  • Printing-plate sleeve change in the machine
  • Colour station movement: through 4 motors with Job memorisation and recall
  • Horizontal, sequential print throw off and on
  • Drying for solvent or water based inks with pneumatic opening of the dryer boxes for web path and cleaning purposes
  • Out feed chill roller (only for 4 and 6 colour versions)
  • Speed synchronisation by encoder or with dancer roll system
Specifiche TecnicheLinea 900Linea 1200
TYPE
901 – 902 – 904
901 – 902 – 904
Number of colours
1 – 2 – 4
1 – 2 – 4
Printing width max. mm
From 1200 to 2400
From 1200 to 2400
Material width max. mm
From1250 to 2450
From1250 to 2450
Printing repeat mm
From 360/550 up to 900
From 380/600 up to 1250
Printing speed up to:
200
200
Trasmission typeGearlessGearless

WINDERS

Specifiche TecnicheTypeMax. Reel Ø mm
Single Reel SSAF/SSAI800 – 1000 – 1200
Double ReelsSDAF/SDAI800 – 1000
Single Reel – Heavy DutySHD1000 – 1350
Automatic WindersDSTA/STA800 – 1000 – 1300
Shaft-lessSSL1350
For Special PurposesSLUup to 1650

MEMBER OF THE FOREIGN TRADE ASSOCIATION
